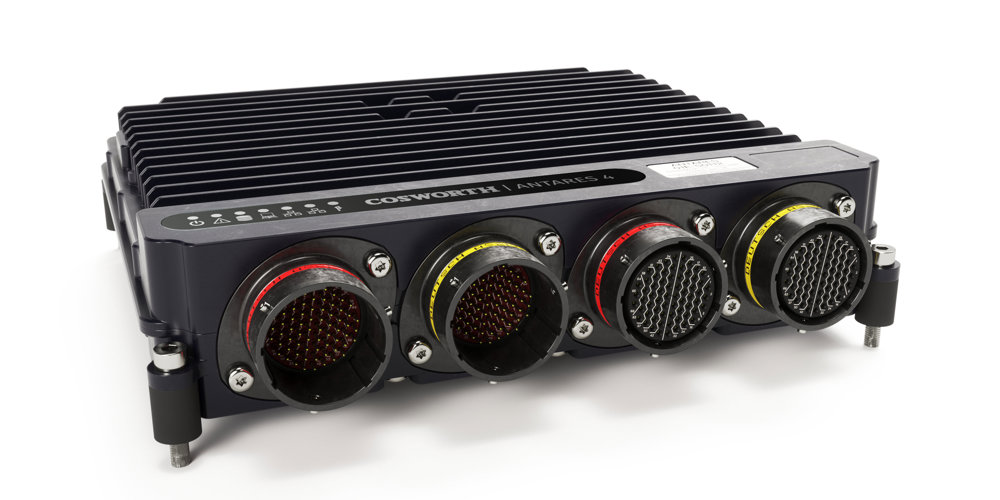

Antares 4

Powertrain Control

  • Optimised for 4-Cylinder Direct Injection and 8-Cylinder Port Injection
  • Traditional or Torque Control Engine Mapping
  • Upto 34x Inputs (4x optionally @ 200kHz)
  • Dual Onboard NTK, Bosch LSU4.9 or ADV Lambda Support
  • Dash Display Control via Ethernet
  • 4GB Onboard High Speed Data Logger (1kHz - 200kHz)
  • Custom Code support via onboard Maths and Logic or Simulink for EV/Hybrid Applications

Antares 4

Powertrain Control

  • Optimised for 4-Cylinder Direct Injection and 8-Cylinder Port Injection
  • Traditional or Torque Control Engine Mapping
  • Upto 34x Inputs (4x optionally @ 200kHz)
  • Dual Onboard NTK, Bosch LSU4.9 or ADV Lambda Support
  • Dash Display Control via Ethernet
  • 4GB Onboard High Speed Data Logger (1kHz - 200kHz)
  • Custom Code support via onboard Maths and Logic or Simulink for EV/Hybrid Applications
  • Vast IO Upto:
  • 20x 12-bit AIN inc 1x PT1000
  • Optional additional 4x 12-bit High Speed AIN @ 200kHz synchronous to crank angle
  • 10x dedicated DIN
  • 2x Onboard Lambda (NTK, LSU 4.9, ADV)
  • 2x dedicated Knock Inputs
  • 2x Thermocouple Inputs
  • 3x CAN
  • 2x LIN
  • 3x Ethernet
  • 8x IGBT or TTL Ignition Drives
  • 16x Peak and Hold Injector Drives
  • 3x H-bridge pairs
  • 42x Total PWM Outputs (Inclusive of alternate functions)

Designed to accommodate a wide range of powertrain technologies and configurations – whether that be ICE (DI/PI), hybrid, or EV – Antares offers an impressive number of inputs and outputs, making it adaptable across diverse market segments, from motorsport to high-performance automotive.

Antares is built upon Cosworth’s powerful and hugely successful CHP2 platform, which brings vast control and logging capabilities, a dramatic increase in processor performance, and a platform for the creation of custom code via Cosworth’s Auto Coding platform utilising MATLAB Simulink tools.

The Antares is often only found at the pinnacle of motorsport competition, until now. Cosworth is pleased to introduce and expand the Antares family line up by launching the Antares 4 and 6: Cost-effective ECUs designed to bring the power and precision of Cosworth technology to a wider range of motorsport applications.

Retaining many of the advanced features, the 4 and 6 variants are tailored to meet budget-conscious applications whilst retaining the flexibility to be utilised as a complete vehicle controller and data logger.

The Antares family of devices is fully supported by Cosworth’s application-specific and industry leading software tools to enable OEMs, teams and individual users alike to streamline development processes and trackside operations.  Cosworth’s Software Toolchain enables our customers to compete and win at all levels of motorsport.

Features

  • Multi-pulse/Stratified GDI and PI control
  • Active torque control, currently used in LMH and Hybrid applications 
  • Real-time FIA compliant PPU limit and BOP control
  • Paddle shift/sequential gearbox control
  • Pit lane speed limiter via a variety of control sources including per cylinder cut control
  • Active knock control (Advance and retard via cycle, time or lap beacon-based events
  • Traction control including grip estimation and track position-based control
  • 200kHz logging synchronous to engine position
  • Fuel flow control
  • Active aero control
  • Control sensor estimation and limp mode strategies
  • Wastegate Control inc dome/capsule pressure
  • Anti-Lag
  • Advanced start line control via time and speed ramps
  • Vast onboard diagnostic channels available at min 50kHz (Crank, Cam, Injector/Coil Current (A) etc)
  • Dual Lambda, Quad VVT, Dual FBW
  • Multistage setup locking and security access levels
  • Vast IO (See bullet list and Product Information sheet)
  • IO Expansion via EtherCAT– SJU 24x 16-bit AINs
