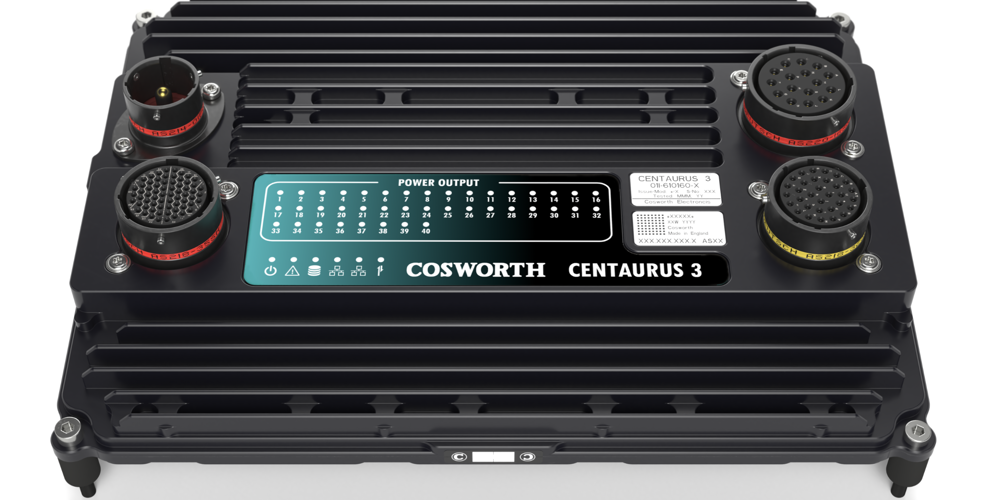

Centaurus 3

Power Management

Centaurus 3

Power Management

  • 40x PWM Power Outputs
  • 5x PWM LSD Outputs
  • Cosworth Ethernet Display Control
  • Expandable I/O with EtherCAT™
  • Custom Code/Strategy Development with MATLAB/Simulink®
  • 12/24v Support

New for 2025! - Cosworth’s Centaurus 3 offers 40 HSD power outputs all with PWM capability, delivering a greater amount of power outputs and configurability than its IPS32 predecessor.

Think of the Centaurus 3 as the Centaurus 5 baby brother - fewer, simplified outputs, but still packing market leading onboard data logging, processing power and output control.

Take control of your power management requirements, leveraging the hugely powerful Pi Maths and Logic functionality to execute complex output control strategies and failsafe's, such as automated drop-starts, power up and down management, light sequencing and much much more.

Cosworth’s Centaurus power box range also includes support for ethernet driven displays and steering wheels (CDU 4.3, 7, 10.3, CCW Mk2, CCW Mk3, and I/O expansion via EtherCAT providing market leading levels of resolution and synchronicity with the SJU (Synchronous Junction Unit).

Cosworth’s Auto-Coding platform is optionally available on the Centaurus 3, allowing for custom power and control strategies to be developed in a MATLAB/Simulink® environment then deployed on to the device.

Contact our sales team to purchase this product
