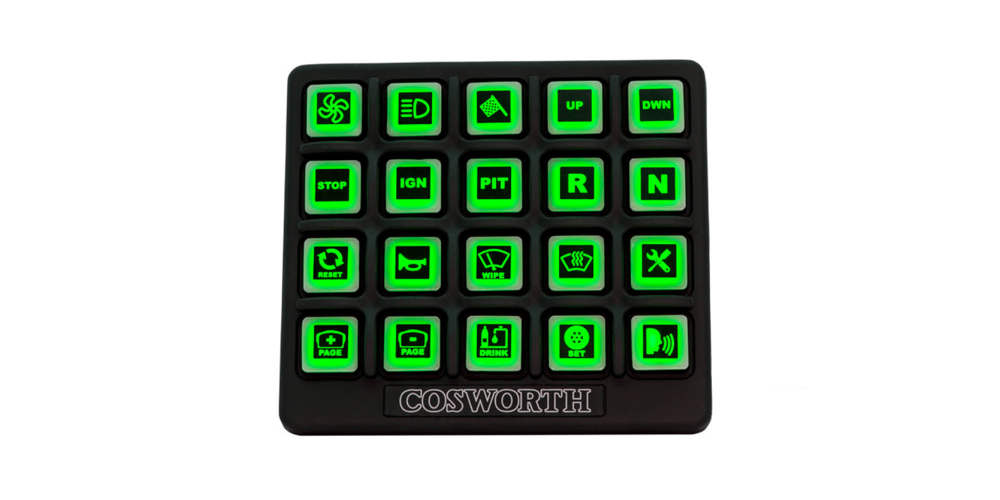

The Cosworth Rubber Switch Panel (RSP) is a fully customisable rubber switch panel supporting up to 20 momentary push button switches in a variety of combinations, with tricolour LED status illumination on each switch.
The open/closed state of the push buttons is transmitted over CAN at 100Hz.
There are 4 independently controlled tricolour LEDs behind each switch to show the status.
The identification of each CAN packet defaults to values which are compatible with the existing Cosworth range of products including ECUs and Intelligent Power Management Systems (IPS32, IPS48).
The CAN identification addresses are stored in non-volatile memory and can be changed by using the RSP configuration menu which is available via the RS232 interface.
