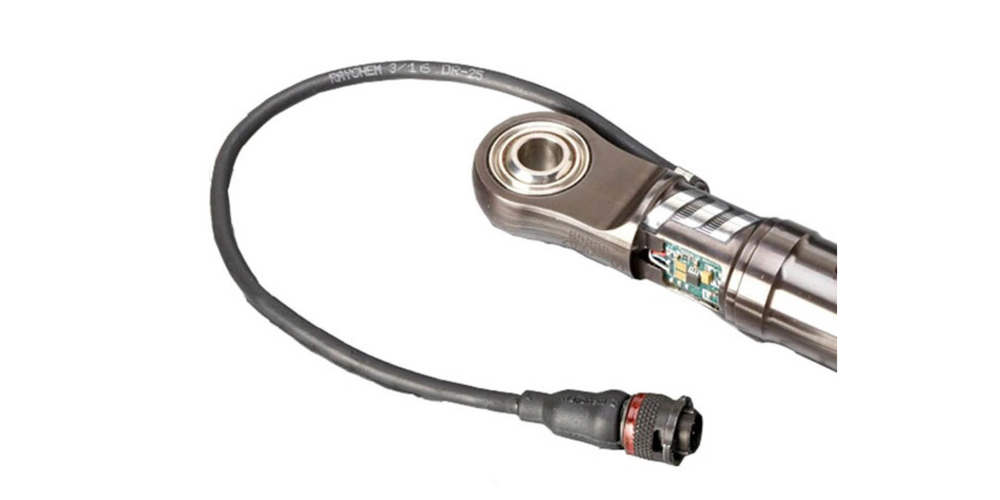

Cosworth understands the importance of accurate, reliable strain gauging and offers competitive pricing and fast turnaround in partnership with our technical partner, First Sensors.

Quality is of paramount importance and we know how costly and time consuming mistakes can be. All gauging staff are trained to aerospace standards with a thorough understanding or surface preparation techniques and correct handling procedures for bonding materials and glues.

Strain gauging services offered are:

• SG01 – Non Amplified Gauge Installation: A simple strain gauge with no amplifier
• SG04 – Amplified Gauge Installation: A strain gauge with integrated amplifier
• SG05 – Amplified 8 Bridge Gauge Installation: Amplified 8 gauge installation (instead of 4); accounts for bending loads
• SG06 – Patented Thermalock (TM) Gauge Installation: Thermalock (TM) temperature sensing on the gauge foil itself, automatically adjusting to temperature and loading; High accuracy temperature compensation.
• SG07 – Patented Thermalock 8 Bridge Gauge Installation: Amplified 8 gauge installation (instead of 4); accounts for bending loads in the parts incorporating Thermalock (TM) temperature sensing on the gauge foil itself, automatically adjusting to temperature and loading. High accuracy temperature compensation.
• SG08 – Patented Thermalock Gauge Installation Full Calibration: Thermalock (TM) temperature sensing on the gauge foil itself, automatically adjusting to temperature and loading, with additional points during calibration for F1 spec accuracy.
• SG10 – Torque sensing gauges – specific to steering columns and driveshafts. Applies also to all customers with a Cosworth Torque Sensor Kit (30B-050331) Applications include, but are not limited to; Pushrod or Pullrod Pushrod / Pullrod Adjuster Rod End Damper Eyelet Wishbones Steering Column
